WPD FS Flow Sensor
- Accurate measurement at low and high flow rates
- Flexible installation in any orientation
- Durable design for long service life
- Billing-approved accuracy for compliant metering
High-performance flow measurement for water up to 130 °C

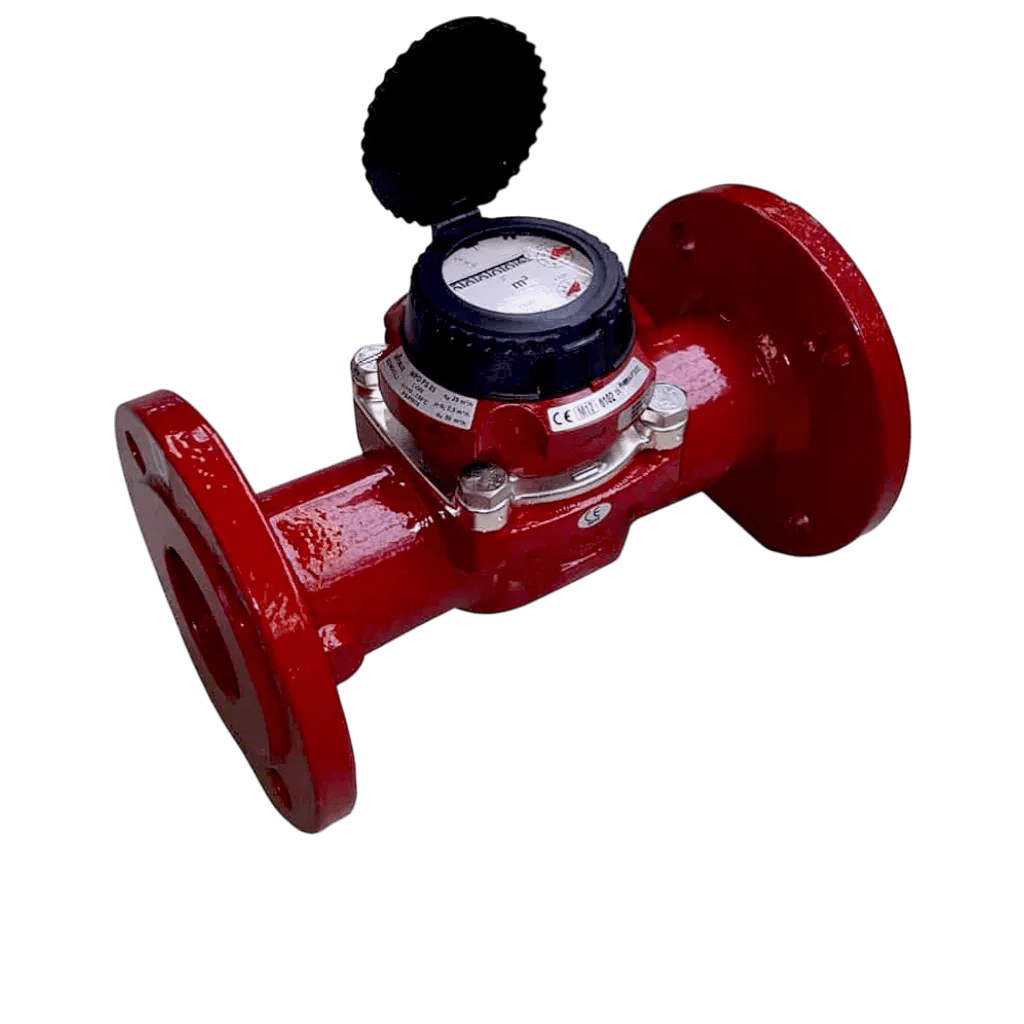

Sensus WPD FS Flow Sensor 130°C is a robust bulk flow sensor designed for accurate measurement of hot water in heating and industrial systems with stable, high-volume flow conditions. Built for durability and long-term performance, it maintains reliable measurement accuracy across demanding operating environments.
Available in sizes DN 40 to DN 300, the WPD FS supports flexible installation in horizontal, vertical, or inclined pipelines, with both short and long body configurations to suit site constraints. For billing-critical applications, selected sizes (DN 50 to DN 150) are MID-approved (2014/32/EU MI-004), ensuring compliance with regulated energy measurement requirements.
The WPD FS Flow Sensor can be equipped with up to three pulse outputs (1x OD, 2x RD), enabling seamless integration into energy management, monitoring, and billing systems. Designed specifically for hot process water up to 130°C, it provides a reliable foundation for thermal energy measurement in district heating and large-scale building applications.
Features
- Patented symmetrical calibration adjustment
- Hermetically sealed register (IP 68)
- Register may be rotated through 360º
- High overload capability
- Removable measuring element
- Up to 3 pulsers (1 x OD, 2 x RD) may be fitted without breaking the approval seal
- Powder coating ensures maximum corrosion protection
- Electromagnetic environment: Class E2
- Mechanical environment condition: Class M1
- Protection class acc. to DIN EN 60529: IP 68
- Temperature range: 10 ... 130 °C
Specifications
- Application: Flow sensor for hot process water in heating and cooling systems.
- Nominal sizes: DN 40 to DN 300; MID-approved for billing in DN 50 to DN 150 (MI004).
- Temperature range: 10 °C to 130 °C.
- Installation orientation: Horizontal, vertical, or inclined pipe installation.
- Pulsers and interfaces: Up to 3 pulsers (1 × OD, 2 × RD) can be installed without breaking the approval seal.
- Protection and durability: IP68 protection; electromagnetic environment Class E2; mechanical environment Class M1.
