HRI Sensor High Resolution Interface
- Remote reading of existing mechanical meters
- No mechanical or magnetic impact on accuracy
- Retrofit extends meter service life
- Available as data or pulse module
- Reliable even in flooded pits
Data or pulse interface for residential water meters

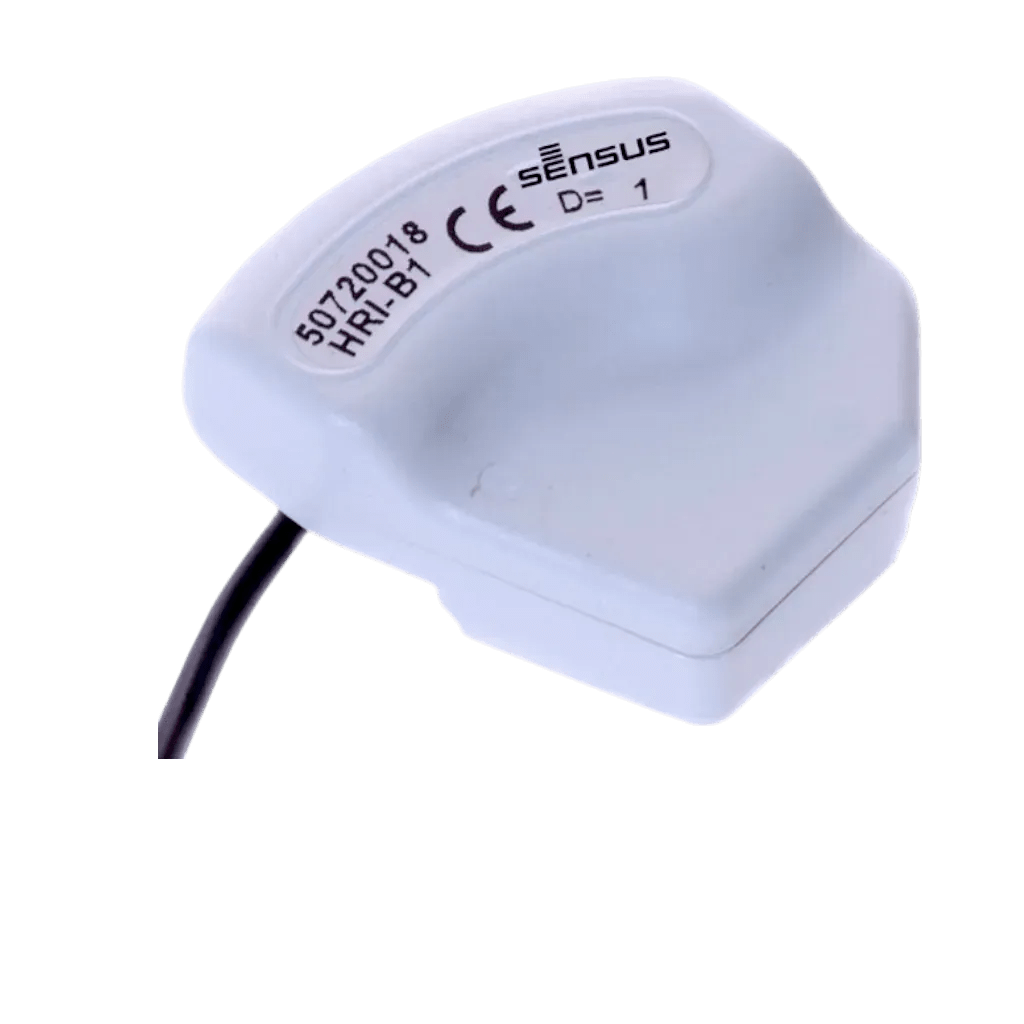

Sensus High Resolution Interface (HRI) Sensor is a universal data interface for residential water meters, enabling reliable remote reading of conventional mechanical meters. It is compatible with single-jet, multi-jet, and piston meters with dry-dial or semi-dry registers, and can be retrofitted to Sensus meters pre-equipped with an HRI modulator.
Using a load-free, non-magnetic detection principle, the HRI captures meter movement in both directions accurately without influencing performance, even in demanding environments such as flooded meter pits. It is available as HRI-A, a high-resolution pulse unit with flow direction detection, or HRI-B, an electronic data unit providing meter ID and counter readings with M-Bus communication and optional pulse output.
Features
- Universal data interface for residential water meters
- Compatibility with single-jet, multi-jet, and piston meters with dry or semi-dry registers
- Load-free detection of pointer rotation using a non-magnetic principle
- Retrofit capability for Sensus meters pre-equipped with an HRI modulator
- Detection of flow direction
- Hermetically sealed housing for operation in harsh environments
Specifications
- Interface types: HRI-A pulse unit; HRI-B data unit.
- Output signals: Pulse output with direction detection; electronic data output.
