Cordonel® Static Flow Water Meter
- Q3/Q1 = 1000
- U0D0 - horizontally or vertically
- Two‑way network communication
- Accurate 20‑yr readings via unique triple‑path design
- Optional pressure monitoring
Manage your distribution network with increased accuracy and control

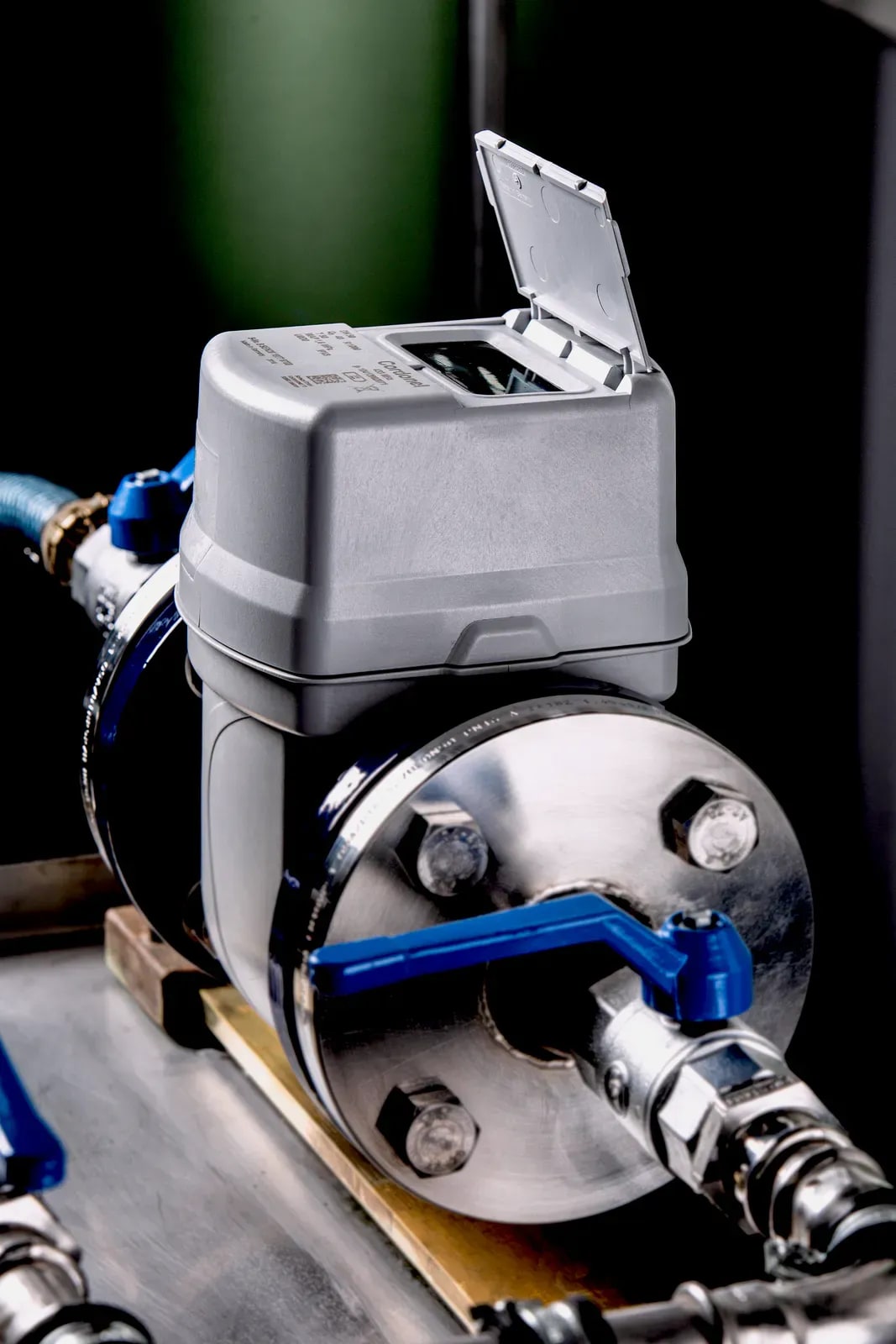

Sensus Cordonel® Static Flow Water Meter is a high-performance bulk meter that enables you to manage your distribution network more efficiently and provides accurate and reliable data in any installation or environmental condition. Using advanced ultrasonic technology and a Sensus communication network, this meter gathers precise low and high-flow data in real time. This solid state meter has no moving parts and offers a patent-pending flow tube with no obstructions, providing a maintenance-free meter over its operational lifetime.
Real U0D0 installation flexibility and a sturdy design allows Sensus Cordonel to accurately capture and measure water consumption, flow, temperature and pressure (optional); it is perfect for use in virtually all commercial, industrial and agricultural settings. Cordonel sizes range between DN40 (1 1/2″) to DN 300 (12″).
Features
- Flexible U0D0 installation with no upstream and downstream pipe required
- Installation in horizontal and vertical pipe orientations
- Solid-state meter providing no moving parts
- 20-year predicted battery lifetime under standard usage conditions
- Maintenance free over its operational lifetime
- Constant accuracy over lifetime, no degradation as components age
- Patent-pending flow tube technology offering optimum flow conditioning
- Three measurement channels for capturing virtually all water flow

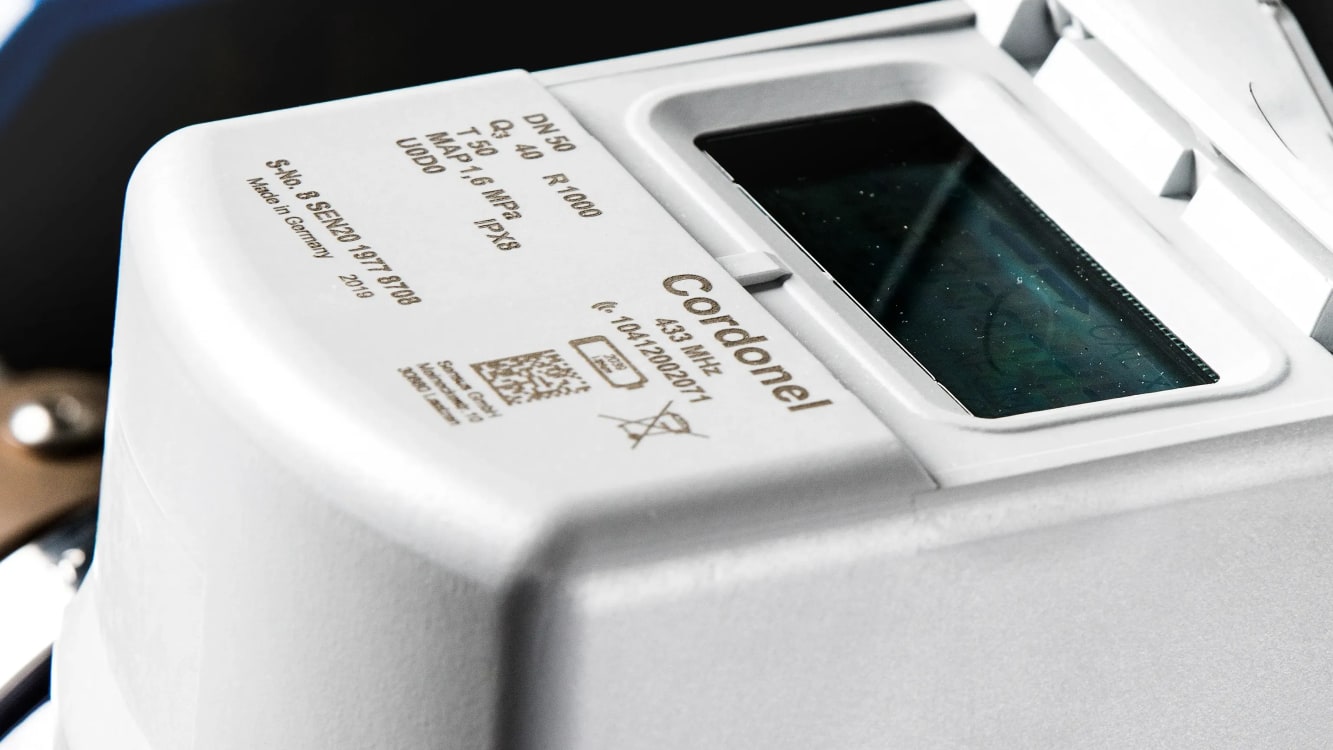

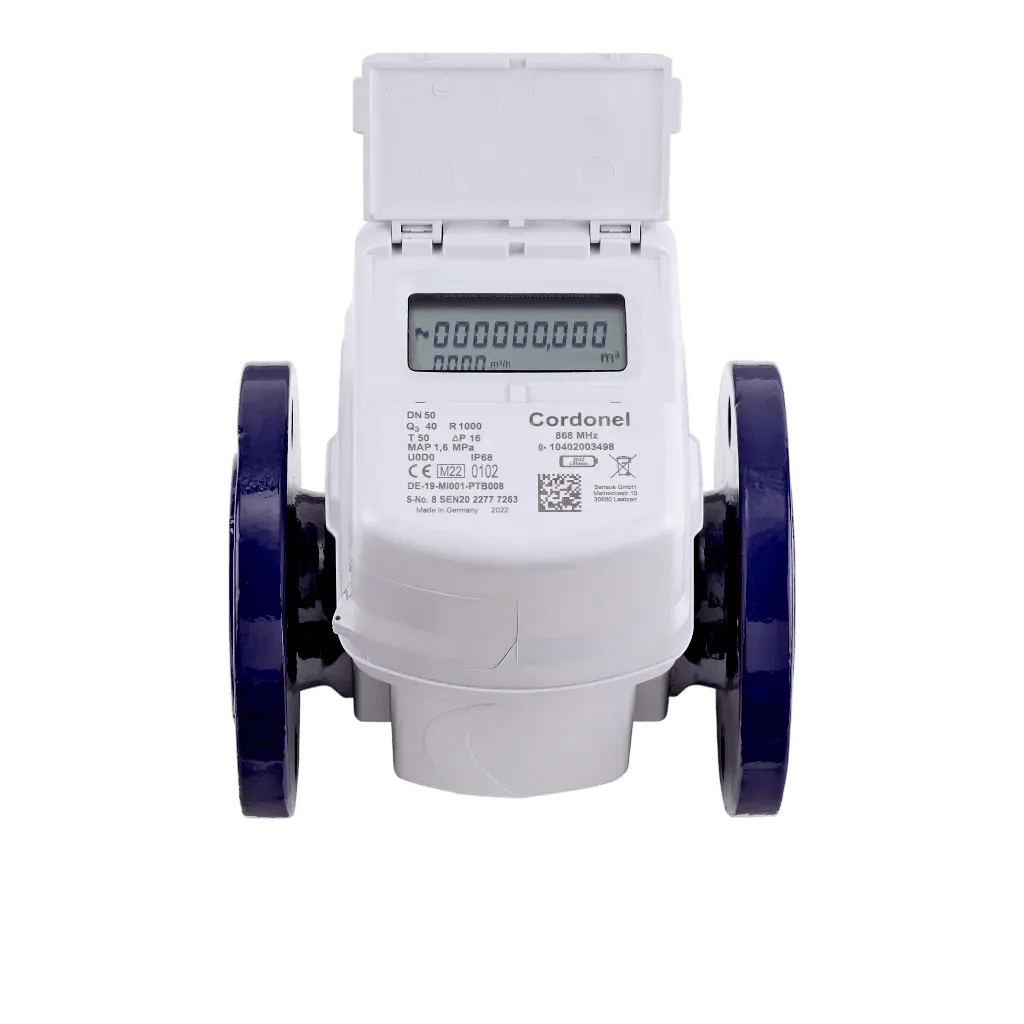

- LCD for consumption, flow, temperature, pressure (optional) and status information
- Integrated radio communication and data logger
- License free radio on frequency 433 or 868 MHz
- Secure 128 bit encrypted data transmission
- NFC wireless interface for readout of the last volume reading
- Optional pulse output with programmable pulse modes, values and lengths
- Meter can be submerged; meets protection class IP68
- MID pattern approval according to annex MI001
Available options:
- Integrated pressure sensor
- Radio communication on alternative frequencies
Specifications

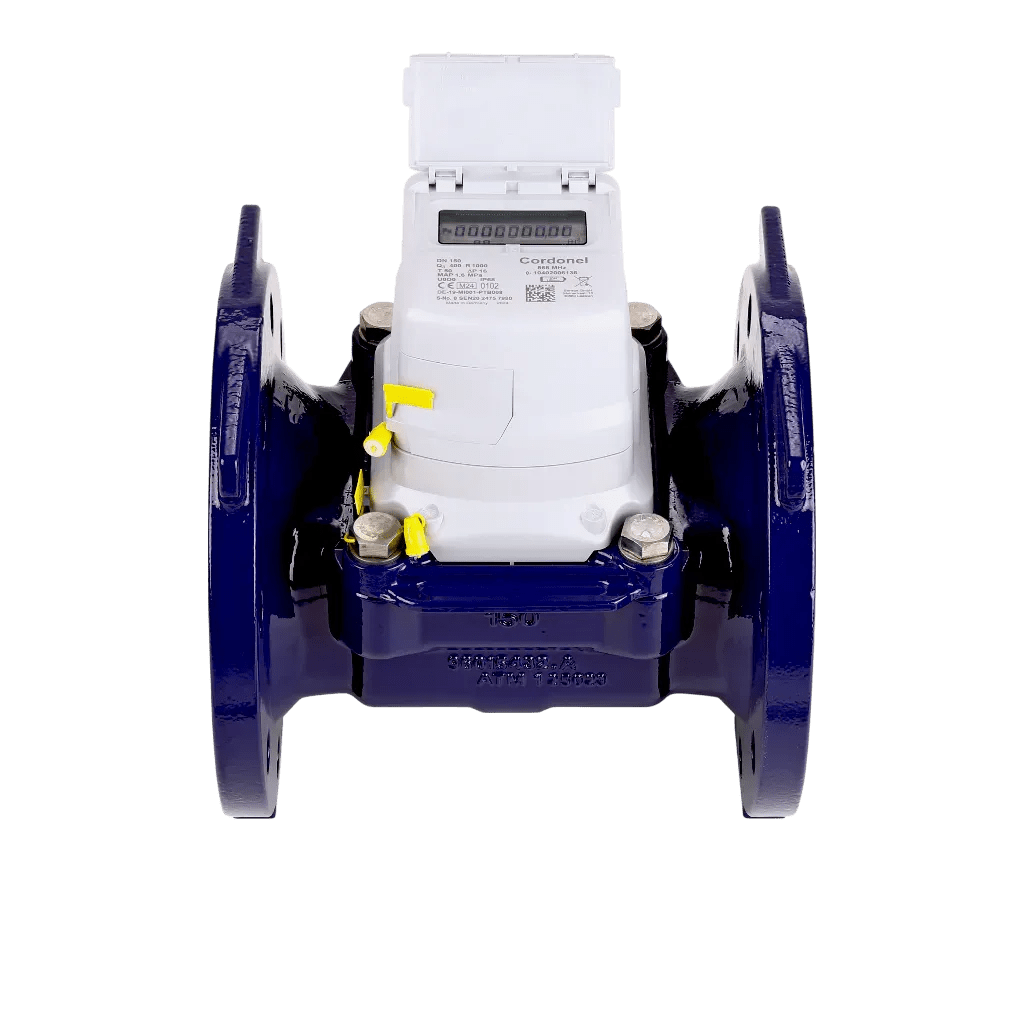

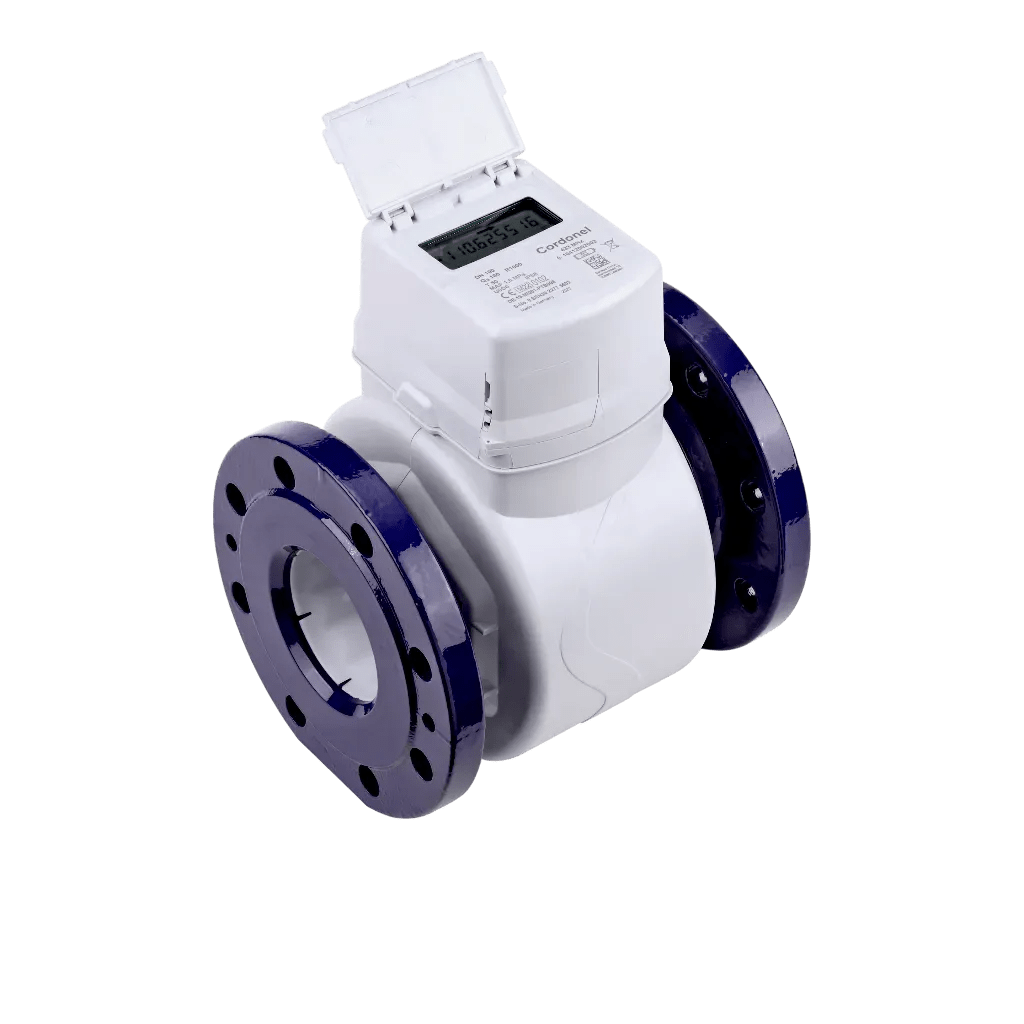

- Range of sizes: DN40 (1 1/2″) to DN 300 (12″)
- Installation position horizontal and vertical
- Metrology approval DE-19-MI001-PTB-008
- Large measuring range; Q3/Q1 R1000
- Meter conforms to:OIML R49:2013 and ISO 4064:2014
- Potable Water approvals: KTW / DVGW, WRAS, ACS, KIWA
- Temperature: 50 °C
- Pressure rate PN 16
- Radio frequency 433 or 868 MHz
- Options: integrated pressure sensor
